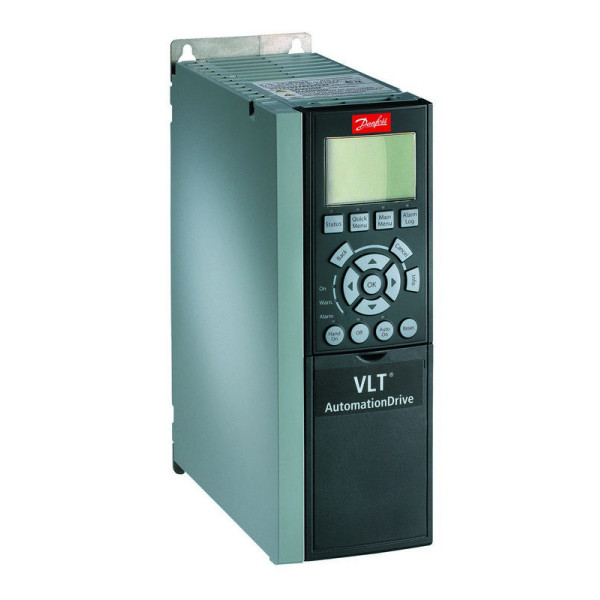

Danfoss Inverter FC302 18kW 380-500VAC/3PH IP20
Product Number: 131H4490
Stock Code : 1
Frequency converterFC-302P18KT5E20H2BGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P18K) 18.5 KW / 25 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI FilterBrake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B4
Other options according to Model code
131H4490
Frequency converterFC-302P18KT5E20H2BGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P18K) 18.5 KW / 25 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI FilterBrake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B4
Other options according to Model code
