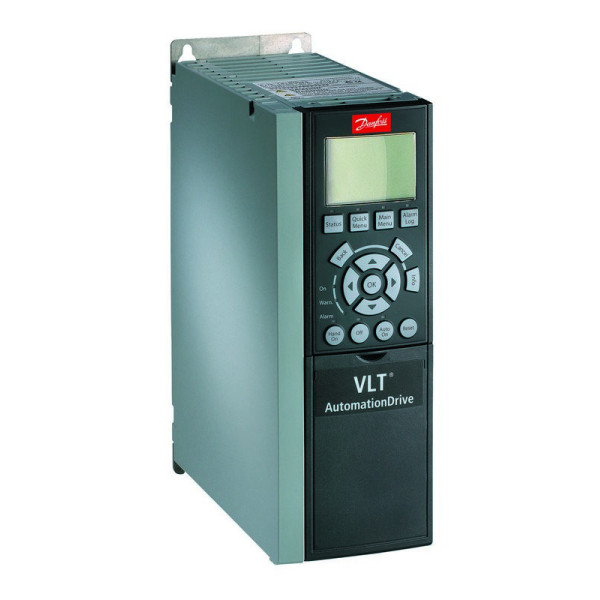

Danfoss Inverter FC302 37kW 380-500VAC/3PH IP20 BR
Product Number: 131H5358
Stock Code : 1
Frequency converterFC-302P37KT5E20H2BGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P37K) 37 KW / 50 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI FilterBrake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: C3
Other options according to Model code
131H5358
Frequency converterFC-302P37KT5E20H2BGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P37K) 37 KW / 50 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI FilterBrake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: C3
Other options according to Model code
