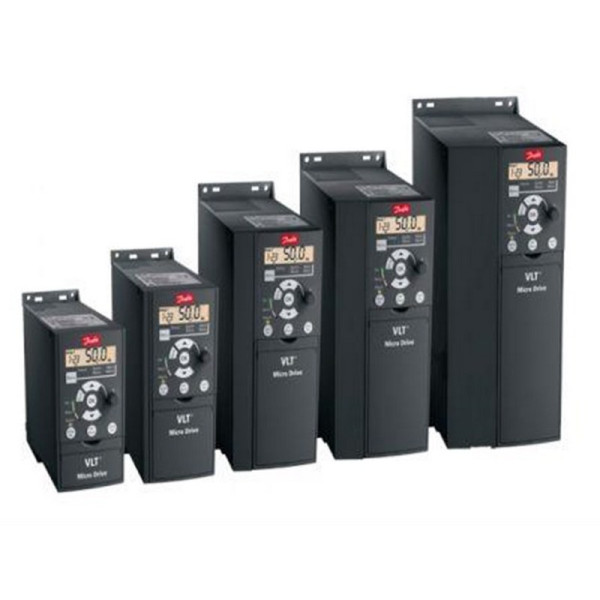

Danfoss Inverter FC51 3kW 380VAC/3PH IP20
Product Number: 132F0024
Stock Code : 18
Frequency ConverterFC-051P3K0T4E20H3BXCXXXSXXXVLT®
Micro Drive FC-51(P3K0) 3.0 KW / 4.0 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis(H3)
RFI Class A1/B (C1)Brake chopper
No Loc. Cont. PanelCoated PCB
No Mains OptionM3-FRAME
Other options according to Model code
132F0024
Frequency ConverterFC-051P3K0T4E20H3BXCXXXSXXXVLT®
Micro Drive FC-51(P3K0) 3.0 KW / 4.0 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis(H3)
RFI Class A1/B (C1)Brake chopper
No Loc. Cont. PanelCoated PCB
No Mains OptionM3-FRAME
Other options according to Model code
