Product Number: 134X3042

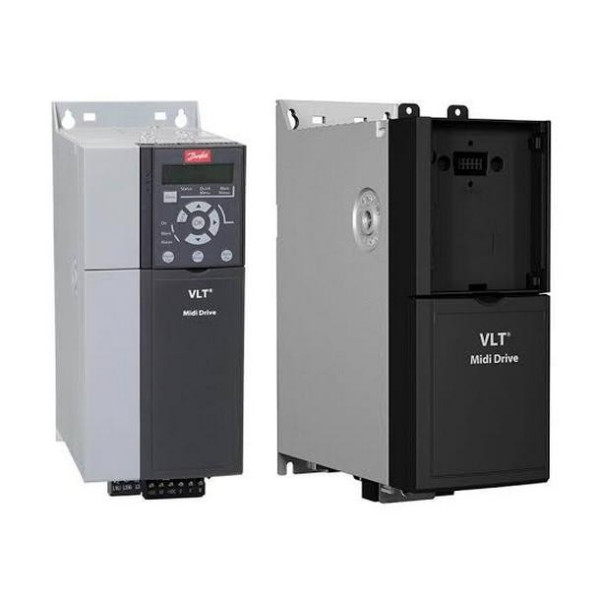

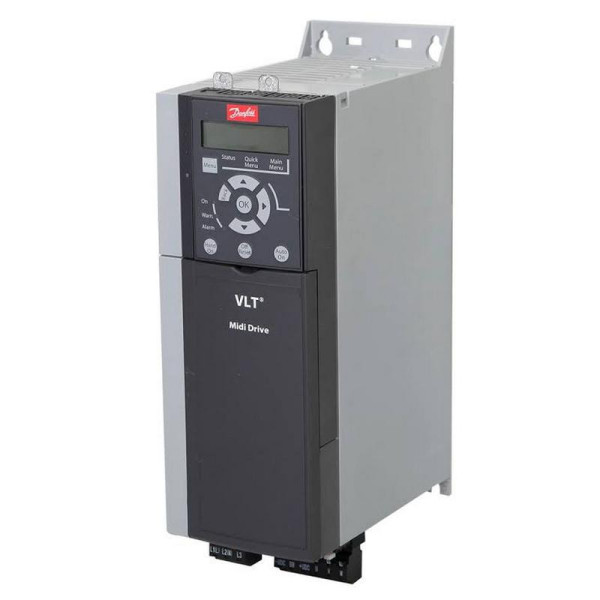

Frequency converterFC-280PK37S2E20H1XXCXXXSXXXXAXVLT®
Midi Drive FC-2800.37 kW / 0.50 HP
Single phase 200-240 VACIP20 / ChassisEMC Cat C1(200V)/C2(400V)No Brake chopperNo displayCoated PCB,
Latest releaseStandard w. Modbus
Frame: K1
Other options according to Model code
Frequency converterFC-280PK37S2E20H1XXCXXXSXXXXAXVLT®
Midi Drive FC-2800.37 kW / 0.50 HP
Single phase 200-240 VACIP20 / ChassisEMC Cat C1(200V)/C2(400V)No Brake chopperNo displayCoated PCB,
Latest releaseStandard w. Modbus
Frame: K1
Other options according to Model code
Frequency converterFC-301P1K1T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-301(P1K1) 1.1 KW / 1.5 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-202P90KT4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P90K) 90 KW / 125 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: C4
Other options according to Model code
Frequency converterFC-302PK37T5E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(PK37) 0.37 KW / 0.50 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
MCD201018T4CV3
175G5167
MCD201018T4CV3
VLT® Compact Starter MCD 201
18 kW 42A:4-6: 354
Three phase, 200-440 VAC
Control voltage: 110/240 VAC or 440 VAC
(A) A-Frame
Model code:MCD201018T4CV3
VLT® Compact Starter MCD 200 from Danfoss includes twofamilies of soft starters in the power range 7.5–110 kW.The series offers easy DIN rail mounting for sizes up to 30 kW,2-wire or 3-wire start/stop control and excellent startingduty (4 x Ie for 6 seconds).Heavy starting rating at 4x Ie for 20 seconds.Compatible with grounded delta power systems
