Product Number: 131B0077

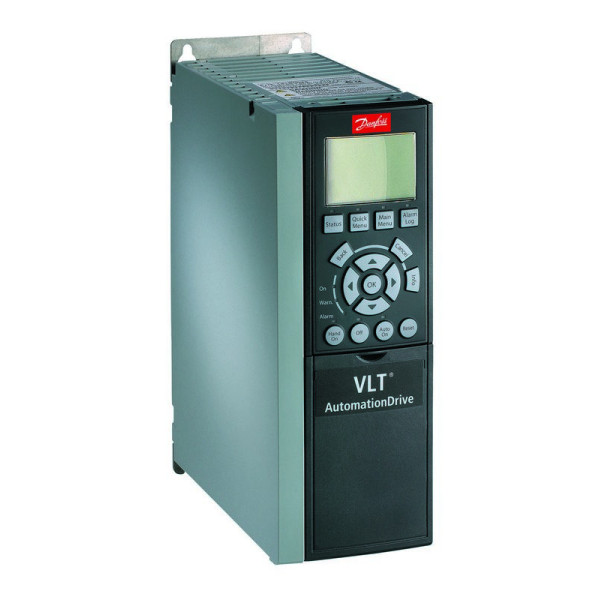

Frequency converterFC-302P1K5T5E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P1K5) 1.5 KW / 2.0 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-302P1K5T5E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P1K5) 1.5 KW / 2.0 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-360H55KT4E20H2XXCDXXSXXXXAXBXVLT®
AutomationDrive FC-(360) 36055 KW / 75 HP
(T4) 380-480VAC (Three phased)IP20 / Chassis
RFI Class A2(X) No Brake ChopperNo Display (No Blind Cover)(C) Coated PCB, LoadsharingStandard Control Card, (BX) No B Option
Frame: J7
Other options according to Model code
Frequency converterFC-302P3K0T5E20H2BGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P3K0) 3.0 KW / 4.0 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI FilterBrake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
