D-Sub 9 Kit For Profibus

MCD60034BT5S1X20CV2

136G8759

MCD60034BT5S1X20CV2

MCD60034BT5S1X20CV2

VLT® Soft Starter MCD 600With Int. Bypass Contactor34 A, Three phase 200-525 V AC

Frame size 1, IP20

Control Voltage: 110~120 VAC or 220~240 VAC

Other options according to Model code

Model code:MCD60034BT5S1X20CV2

VLT® Soft Starter MCD 600 is a total motor starting solution.Current transformers measure motor current and provide feedback forcontrolled motor ramp profiles.Adaptive Acceleration Control (AAC) automatically employs the beststarting and stopping profile for the application.Emergency mode and Pump clean function are standard features.The optional remote control panel adds more functionality, such asthe Start/Stop buttons, and quick jump buttons to menu options

Frequency converterFC-302N90KT5E20H2XGCXXXSXXXXAXBXCXXXXDXVLT®

AutomationDrive FC-302(N90K) 90 KW / 125 HP

Three phase380 - 500 VAC

(E20) IP20 / Chassis

RFI Filter

No brake chopper

Graphical Loc. Cont. PanelCoated PCB

No Mains Option

Latest release std. SW.

No A Option, No B OptionNo C1 option, No D option

Frame: D3H

Other options according to Model code

Frequency converterFC-202P75KT4E55H2XGXXXXSXXXXAXBXCXXXXDXVLT®

AQUA Drive FC-202(P75K) 75 KW / 100 HP

Three phase380 - 480 VACIP55 / Type 12

RFI Filter

No brake chopper

Graphical Loc. Cont. Panel

Not coated PCB

No Mains Option

Latest release std. SW.

No A Option, No B OptionNo C1 option, No D option

Frame: C2

Other options according to Model code

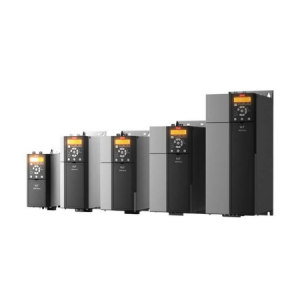

Frequency converterFC-280P5K5T4E20H2BXCXXXSXXXXA0VLT®

Midi Drive FC-2805.5 kW / 7.5 HP

Three phase 380-480 VACIP20 / ChassisEMC Cat C3 (200/400V)Brake chopperNo displayCoated PCB,

Latest releaseIntegrated Profibus DP

Frame: K2

Other options according to Model code
