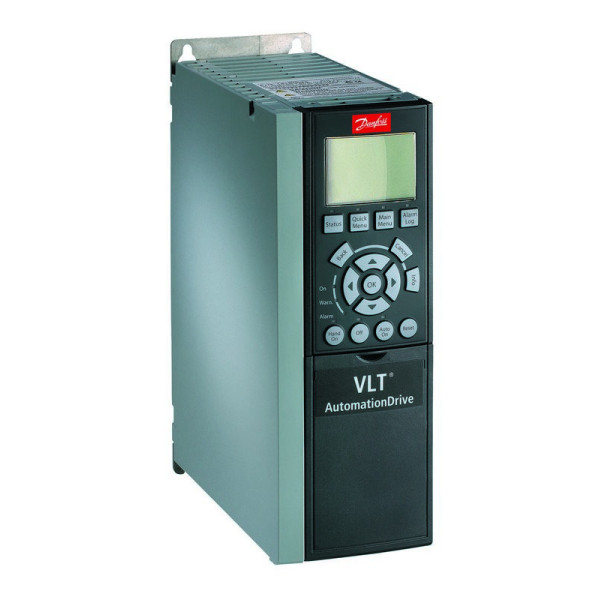

Product Number: 131B0902
Frequency converterFC-301PK55T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-3010.55 KW / 0.75 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-301PK55T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-3010.55 KW / 0.75 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-280PK75T4E20H2BXCXXXSXXXXANVLT®
Midi Drive FC-2800.75 kW / 1.0 HP
Three phase 380-480 VACIP20 / ChassisEMC Cat C3 (200/400V)Brake chopperNo displayCoated PCB,
Latest releaseIntegrated EtherNET IP
Frame: K1
Other options according to Model code
Frequency ConverterFC-051PK37S2E20H3XXCXXXSXXXVLT®
Micro Drive FC-51(PK37) 0.37 KW / 0.50 HP
Single phase200 - 240 VAC
(E20) IP20 / Chassis(H3)
RFI Class A1/B (C1)
No brake chopper
No Loc. Cont. PanelCoated PCB
No Mains OptionM1-FRAME
Other options according to Model code
Frequency converterFC-202P22KT4E20H1XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P22K) 22 KW / 30 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis(H1)
RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B4
Other options according to Model code
