Rectifier Brid For VLT5000

MCD50037BT5G1X20CV1

175G5501This product has been discontinued.

MCD50037BT5G1X20CV1

VLT® Soft Starter MCD 500200-525 VAC, 37A, IP20,

Control Voltage: 24 VAC/VDC

Model code:MCD50037BT5G1X20CV1

VLT® Soft Starter MCD 500 is a total motor starting solution.Current transformers measure motor current and provide feedback for controlled motor ramp profiles. AAC, the Adaptive Acceleration Control automatically employs the best starting and stopping profile for the application

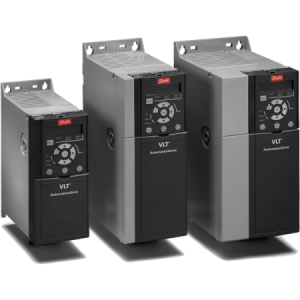

Frequency converterFC-360H3K0T4E20H2BXCDXXSXXXXAXBXVLT®

AutomationDrive FC-(360) 3603.0 KW / 4.0 HP

(T4) 380-480VAC (Three phased)IP20 / Chassis

RFI Class A2(B) Brake ChopperNo Display (No Blind Cover)(C) Coated PCB, LoadsharingStandard Control Card, (BX) No B Option

Frame: J2

Other options according to Model code

Frequency converterFC-302P7K5T5E20H2BGXXXXSXXXXAXBXCXXXXDXVLT®

AutomationDrive FC-302(P7K5) 7.5 KW / 10 HP

Three phase380 - 500 VAC

(E20) IP20 / Chassis

RFI FilterBrake chopper

Graphical Loc. Cont. Panel

Not coated PCB

No Mains Option

Latest release std. SW.

No A Option, No B OptionNo C1 option, No D option

Frame: A3

Other options according to Model code
