Product Number: 131B0991

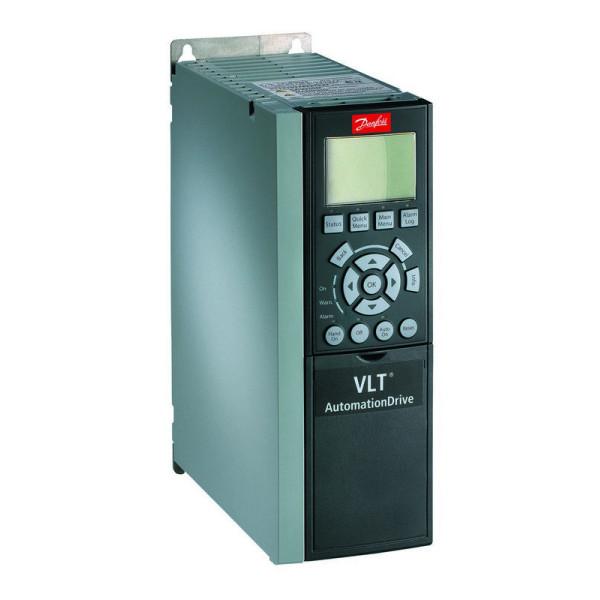

Frequency converterFC-301P4K0T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-301(P4K0) 4.0 KW / 5.5 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-301P4K0T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-301(P4K0) 4.0 KW / 5.5 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
Frequency converterFC-280P2K2T4E20H2BXCXXXSXXXXAXVLT®
Midi Drive FC-2802.2 kW / 3.0 HP
Three phase 380-480 VACIP20 / ChassisEMC Cat C3 (200/400V)Brake chopperNo displayCoated PCB,
Latest releaseStandard w. Modbus
Frame: K1
Other options according to Model code
