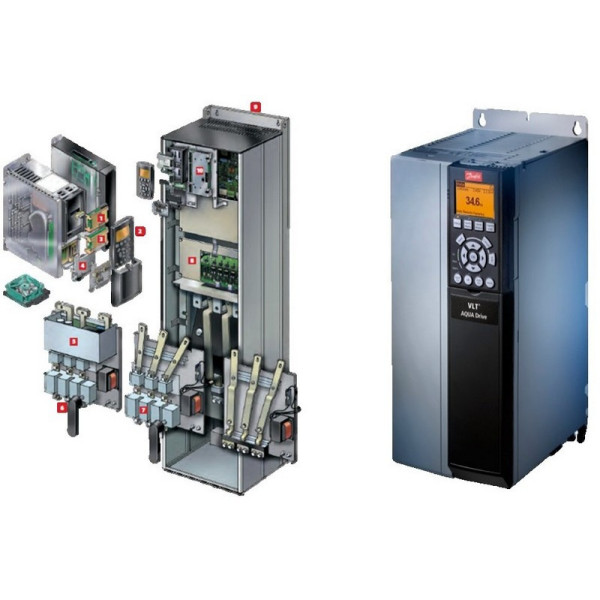

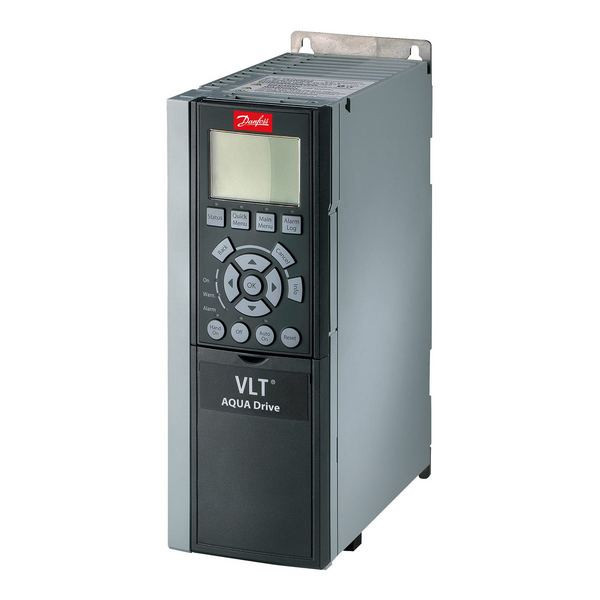

Danfoss Inverter FC202 4KW 380VAC/3PH IP20
Product Number: 131B8920
Stock Code : 4
Frequency converterFC-202P4K0T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P4K0) 4.0 KW / 5.5 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
131B8920
Frequency converterFC-202P4K0T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P4K0) 4.0 KW / 5.5 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
