Product Number: 134G2414
Frequency converterFC-302P90KT7E21H2BGC7XXSXXXXA0BXCXXXXDXVLT®
AutomationDrive FC-302(P90K) 90 KW / 125 HP
Three phase525 - 690 VAC *IP21 / Type 1
RFI FilterBrake chopper
Graphical Loc. Cont. PanelCoated PCBFuse
Latest release std. SW.PROFIBUS DP MCA 101, No B OptionNo C1 option, No D option
Frame: D1
Other options according to Model code
Frequency converterFC-302P90KT7E21H2BGC7XXSXXXXA0BXCXXXXDXVLT®
AutomationDrive FC-302(P90K) 90 KW / 125 HP
Three phase525 - 690 VAC *IP21 / Type 1
RFI FilterBrake chopper
Graphical Loc. Cont. PanelCoated PCBFuse
Latest release std. SW.PROFIBUS DP MCA 101, No B OptionNo C1 option, No D option
Frame: D1
Other options according to Model code
Frequency ConverterFC-102P5K5T4E55H1XGX1XXSXXXXAXBXCXXXXDXVLT®
HVAC Drive FC-102(P5K5) 5.5 KW / 7.5 HP
Three phase380 - 480 VACIP55 / Type 12(H1)
RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCBMains Disconnect
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A5
Other options according to Model Code

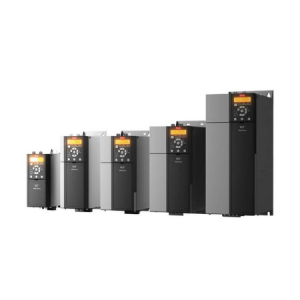

Frequency converterFC-280P1K5T4E20H1BXCXXXSXXXXAXVLT®
Midi Drive FC-2801.5 kW / 2.0 HP
Three phase 380-480 VACIP20 / ChassisEMC Cat C1(200V)/C2(400V)Brake chopperNo displayCoated PCB,
Latest releaseStandard w. Modbus
Frame: K1
Other options according to Model code
