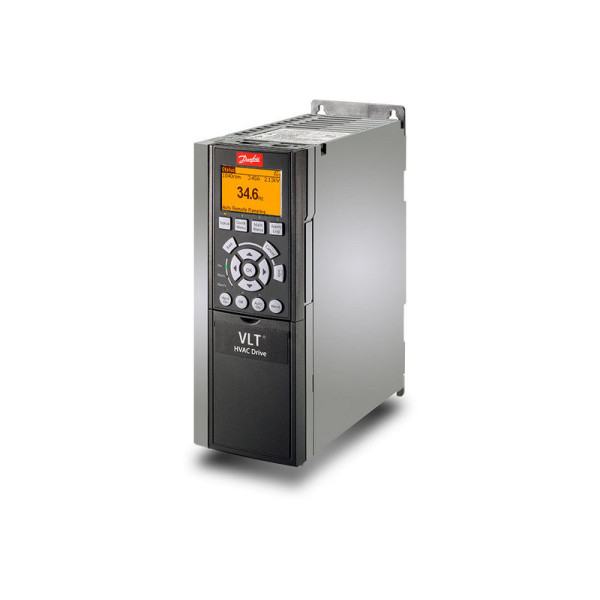

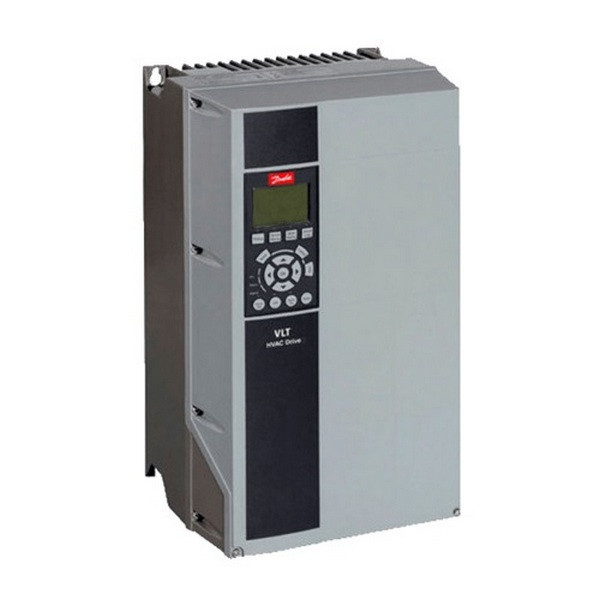

Danfoss Inverter FC102 90KW 380VAC/3PH IP20
Product Number: 131F5448
Stock Code : 1
Frequency ConverterFC-102P90KT4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
HVAC Drive FC-102(P90K) 90 KW / 125 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: C4
Other options according to Model Code
131F5448
Frequency ConverterFC-102P90KT4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
HVAC Drive FC-102(P90K) 90 KW / 125 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: C4
Other options according to Model Code
