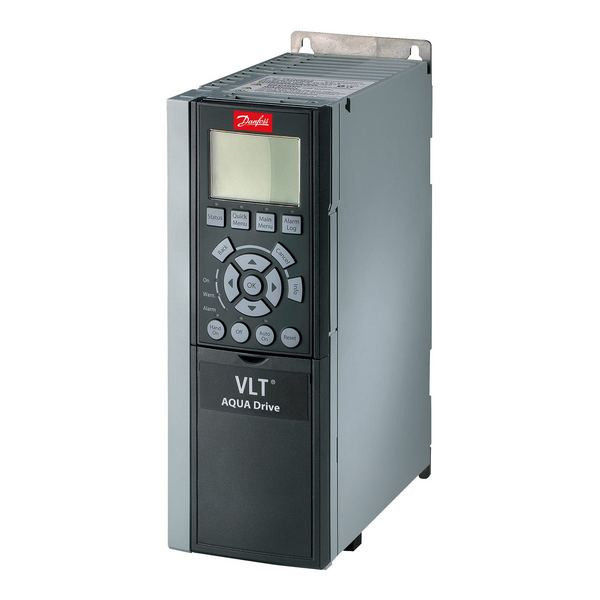

Danfoss Inverter FC202 22KW 380VAC/3PH IP20
Product Number: 131F6768
Stock Code : 1
Frequency converterFC-202P22KT4E20H1XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P22K) 22 KW / 30 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis(H1)
RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B4
Other options according to Model code
131F6768
Frequency converterFC-202P22KT4E20H1XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P22K) 22 KW / 30 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis(H1)
RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B4
Other options according to Model code
