Product Number: 131Z5865

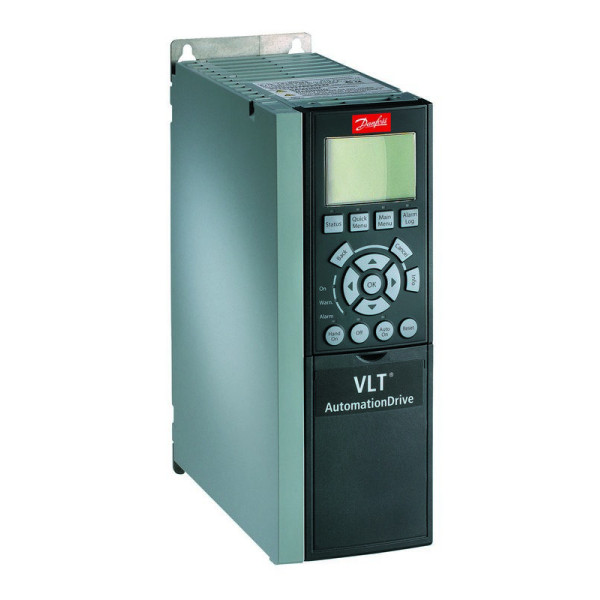

Frequency converterFC-301PK75T4Z20H3TGXXXXSXXXXALBXCXXXXDXVLT®
AutomationDrive FC-301(PK75) 0.75 KW / 1.0 HP
Three phase380 - 480 VACIP20 / Chassis A1
Frame(H3)
RFI Class A1/B (C1)Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.PROFINET MCA 120, No B OptionNo C1 option, No D optionFrame: A1
Other options according to Model code
Frequency converterFC-301PK75T4Z20H3TGXXXXSXXXXALBXCXXXXDXVLT®
AutomationDrive FC-301(PK75) 0.75 KW / 1.0 HP
Three phase380 - 480 VACIP20 / Chassis A1
Frame(H3)
RFI Class A1/B (C1)Safe Stop
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.PROFINET MCA 120, No B OptionNo C1 option, No D optionFrame: A1
Other options according to Model code
Frequency converterFC-202P30KT4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P30K) 30 KW / 40 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B4
Other options according to Model code
Frequency converterFC-360H2K2T4E20H2BXCDXXSXXXXAXBXVLT®
AutomationDrive FC-(360) 3602.2 KW / 3.0 HP
(T4) 380-480VAC (Three phased)IP20 / Chassis
RFI Class A2(B) Brake ChopperNo Display (No Blind Cover)(C) Coated PCB, LoadsharingStandard Control Card, (BX) No B Option
Frame: J1
Other options according to Model code
Frequency converterFC-301P4K0T4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-301(P4K0) 4.0 KW / 5.5 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
MCD50790CT5G4X00CV2
175G5543This product has been discontinued.
MCD5-0790C-T5-G4X-00-CV2MCD50790CT5G4X00CV2
VLT® Soft Starter MCD 500200-525 VAC, 790A, IP00,
Control Voltage: 110 VAC and 220 VAC
Model code:MCD50790CT5G4X00CV2
VLT® Soft Starter MCD 500 is a total motor starting solution.Current transformers measure motor current and provide feedback for controlled motor ramp profiles. AAC, the Adaptive Acceleration Control automatically employs the best starting and stopping profile for the application
