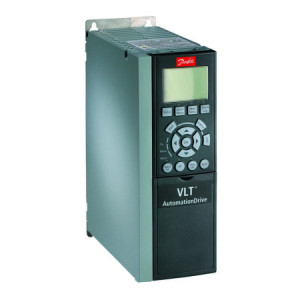

Danfoss Inverter FC302 3kW 380-500VAC/3PH IP20
Product Number: 131B0079
Stock Code : 4
Frequency converterFC-302P3K0T5E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P3K0) 3.0 KW / 4.0 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
131B0079
Frequency converterFC-302P3K0T5E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AutomationDrive FC-302(P3K0) 3.0 KW / 4.0 HP
Three phase380 - 500 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: A2
Other options according to Model code
