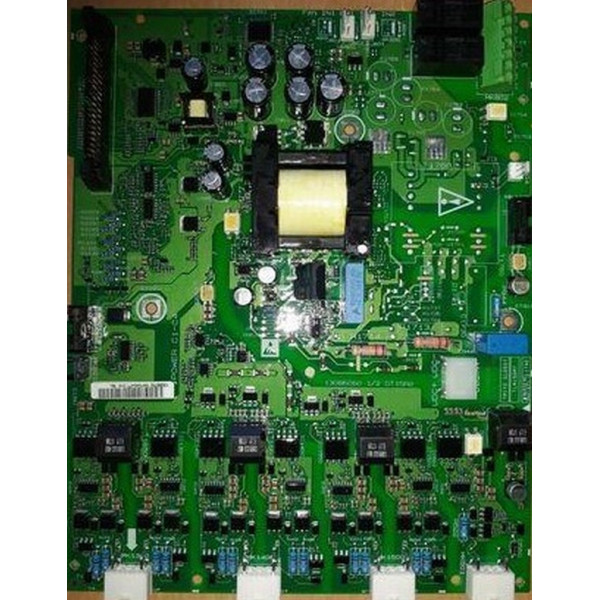

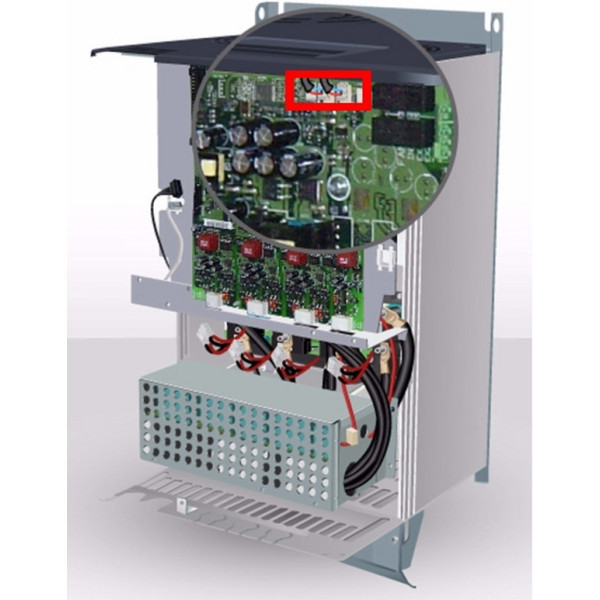

P-Card for N90KWFC302 All Enclosure

Frequency converterFC-302PK75T5E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®

AutomationDrive FC-302(PK75) 0.75 KW / 1.0 HP

Three phase380 - 500 VAC

(E20) IP20 / Chassis

RFI Filter

No brake chopper

Graphical Loc. Cont. Panel

Not coated PCB

No Mains Option

Latest release std. SW.

No A Option, No B OptionNo C1 option, No D option

Frame: A2

Other options according to Model code

MCD202022T4CV3

175G5212

MCD202022T4CV3

VLT® Compact Starter MCD 202

22 kW 48A:4-6: 354

Three phase, 200-440 VAC

Control voltage: 110/240 VAC or 440 VAC

(A) A-Frame

Model code:MCD202022T4CV3

VLT® Compact Starter MCD 200 from Danfoss includes twofamilies of soft starters in the power range 7.5–110 kW.The series offers easy DIN rail mounting for sizes up to 30 kW,2-wire or 3-wire start/stop control and excellent startingduty (4 x Ie for 6 seconds).Heavy starting rating at 4x Ie for 20 seconds.Compatible with grounded delta power systems

MCD202045T6CV3

175G5237Please click on Re-configure to confirm configuration and order the product.

MCD202045T6CV3

VLT® Compact Starter MCD 202

45 kW 85A:4-6: 594

Three phase, 200-575 VAC

Control voltage: 110/240 VAC or 440 VAC

(B) B-Frame

Model code:MCD202045T6CV3

VLT® Compact Starter MCD 200 from Danfoss includes twofamilies of soft starters in the power range 7.5–110 kW.The series offers easy DIN rail mounting for sizes up to 30 kW,2-wire or 3-wire start/stop control and excellent startingduty (4 x Ie for 6 seconds).Heavy starting rating at 4x Ie for 20 seconds.Compatible with grounded delta power systems.
