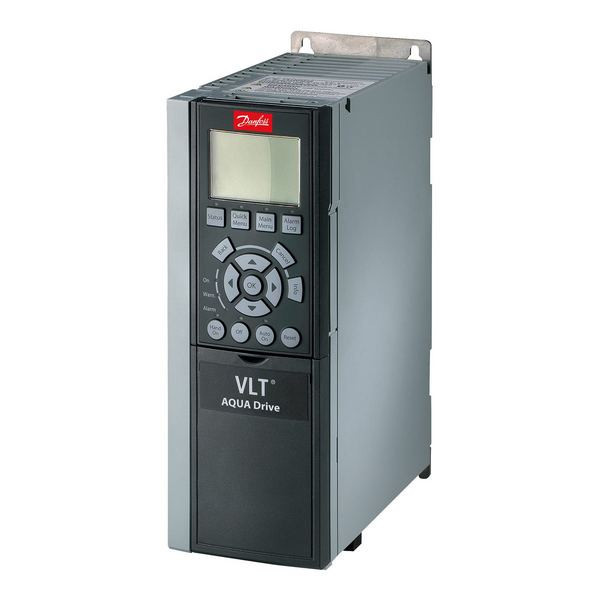

Danfoss Inverter FC202 11kW 380VAC/3PH IP20
Product Number: 131F6637
Stock Code : 3
Frequency converterFC-202P11KT4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P11K) 11 KW / 15 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B3
Other options according to Model code
131F6637
Frequency converterFC-202P11KT4E20H2XGXXXXSXXXXAXBXCXXXXDXVLT®
AQUA Drive FC-202(P11K) 11 KW / 15 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.
No A Option, No B OptionNo C1 option, No D option
Frame: B3
Other options according to Model code
