Product Number: 175G5536
MCD50215BT5G2X00CV2
175G5536
MCD50215BT5G2X00CV2

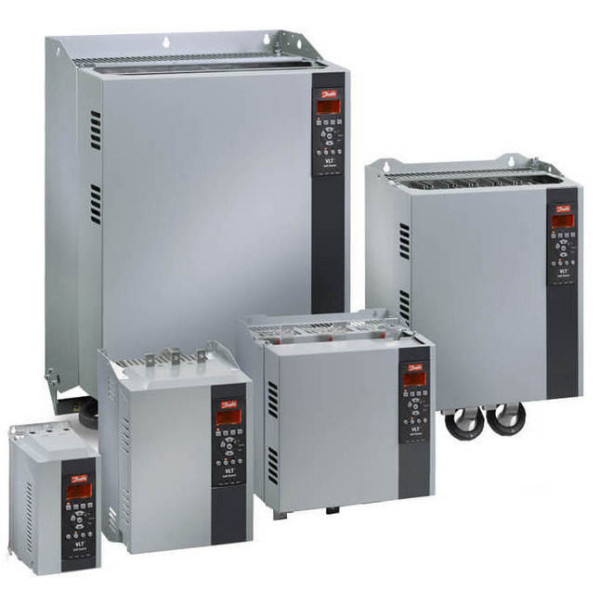

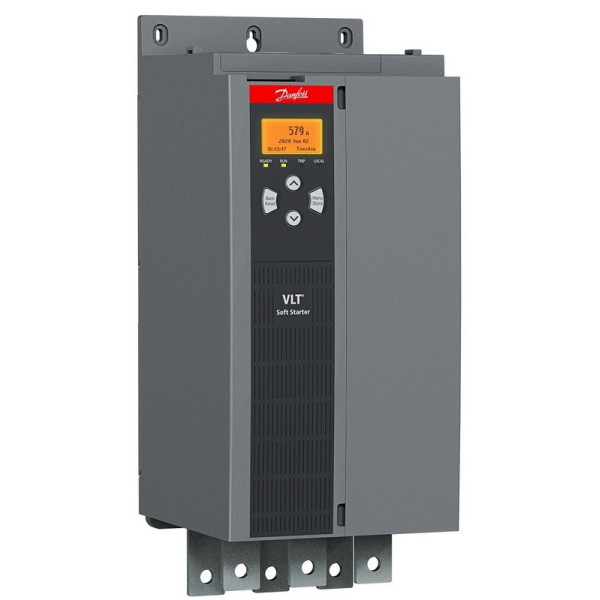

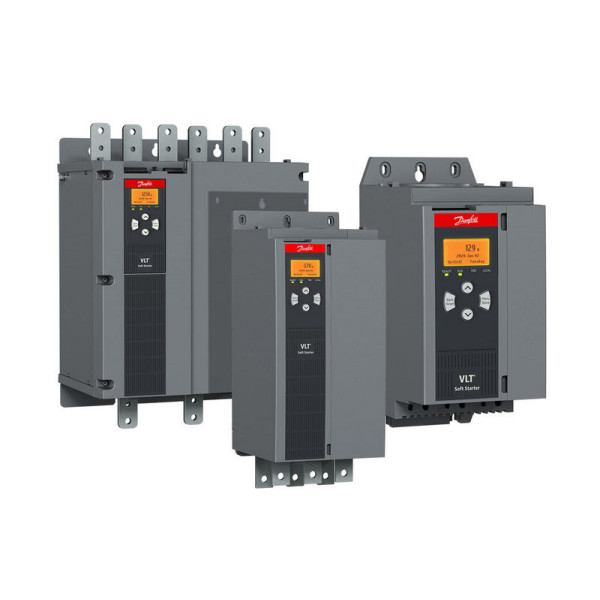

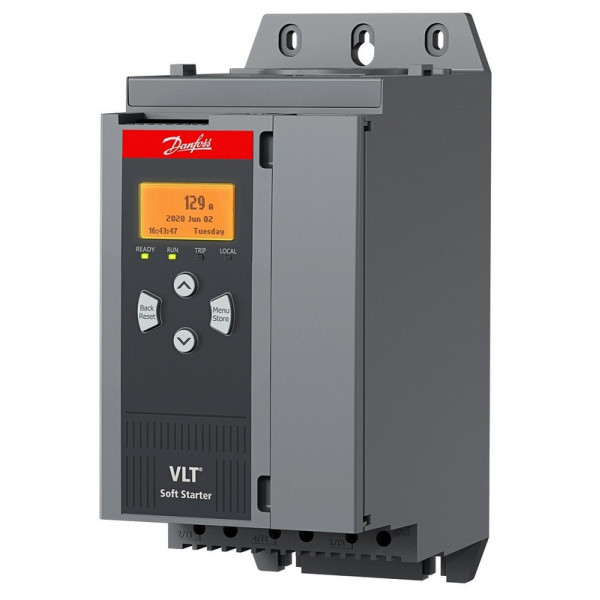

VLT® Soft Starter MCD 500200-525 VAC, 215A, IP00,
Control Voltage: 110 VAC and 220 VAC
Model code:MCD50215BT5G2X00CV2
VLT® Soft Starter MCD 500 is a total motor starting solution.Current transformers measure motor current and provide feedback for controlled motor ramp profiles. AAC, the Adaptive Acceleration Control automatically employs the best starting and stopping profile for the application
MCD50215BT5G2X00CV2
175G5536
MCD50215BT5G2X00CV2
VLT® Soft Starter MCD 500200-525 VAC, 215A, IP00,
Control Voltage: 110 VAC and 220 VAC
Model code:MCD50215BT5G2X00CV2
VLT® Soft Starter MCD 500 is a total motor starting solution.Current transformers measure motor current and provide feedback for controlled motor ramp profiles. AAC, the Adaptive Acceleration Control automatically employs the best starting and stopping profile for the application
Frequency converterFC-280P11KT4E20H2BXCXXXSXXXXA0VLT®
Midi Drive FC-28011 kW / 15 HP
Three phase 380-480 VACIP20 / ChassisEMC Cat C3 (200/400V)Brake chopperNo displayCoated PCB,
Latest releaseIntegrated Profibus DP
Frame: K4
Other options according to Model code
Frequency ConverterFC-102P15KT4E20H1XGXXXXSXXXXA0BXCXXXXDXVLT®
HVAC Drive FC-102(P15K) 15 KW / 20 HP
Three phase380 - 480 VAC
(E20) IP20 / Chassis(H1)
RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB
No Mains Option
Latest release std. SW.PROFIBUS DP MCA 101, No B OptionNo C1 option, No D option
Frame: B3
Other options according to Model Code
Frequency converterFC-280P2K2T4E20H2BXCXXXSXXXXALVLT®
Midi Drive FC-2802.2 kW / 3.0 HP
Three phase 380-480 VACIP20 / ChassisEMC Cat C3 (200/400V)Brake chopperNo displayCoated PCB,
Latest releaseIntegrated PROFINET
Frame: K1
Other options according to Model code
MCD202018T4CV3
175G5211
MCD202018T4CV3
VLT® Compact Starter MCD 202
18 kW 42A:4-6: 354
Three phase, 200-440 VAC
Control voltage: 110/240 VAC or 440 VAC
(A) A-Frame
Model code:MCD202018T4CV3
VLT® Compact Starter MCD 200 from Danfoss includes twofamilies of soft starters in the power range 7.5–110 kW.The series offers easy DIN rail mounting for sizes up to 30 kW,2-wire or 3-wire start/stop control and excellent startingduty (4 x Ie for 6 seconds).Heavy starting rating at 4x Ie for 20 seconds.Compatible with grounded delta power systems
